EN856 4SP Four-Spiral High-Pressure Hydraulic Hose
Four-spiral wire hydraulic hose for very high pressure applications like mining and heavy equipment.
Quick Specifications
| Inner Tube | Oil-resistant NBR synthetic rubber |
|---|---|
| Reinforcement | Four alternating high-tensile steel wire spirals |
| Cover | Abrasion & weather resistant synthetic rubber |
| Temperature | -40°C to +120°C |
| Standard | EN856 4SP / SAE 100R12 |
| Inside Diameter | 1/2" to 2" |
SAE / DIN / EN Standards
100% Proof Tested
OEM Branding Available
MOQ Flexible
Overview
Product Overview
The EN856 4SP four-spiral hydraulic hose is engineered for extremely high-pressure hydraulic systems. Four alternating layers of high-tensile steel wire spiral provide exceptional pressure capacity and impulse life. Designed for excavators, mining shovels, drilling rigs and other heavy-duty equipment where safety is critical.
Quanyi 4SP hoses undergo impulse testing up to 400,000 cycles, exceeding EN 856 requirements.
Key Features
Key Features
- Four alternating layers of high-tensile steel wire spiral reinforcement
- Working pressure up to 45 MPa (6,525 psi) for the most demanding circuits
- Impulse life ≥ 400,000 cycles, exceeding EN 856 requirements
- Thick abrasion-resistant cover for mining and heavy equipment service
- Temperature range -40°C to +120°C for high-temperature hydraulics
- Equivalent to SAE 100R12 - accepted by global OEMs and mining operators
Structure

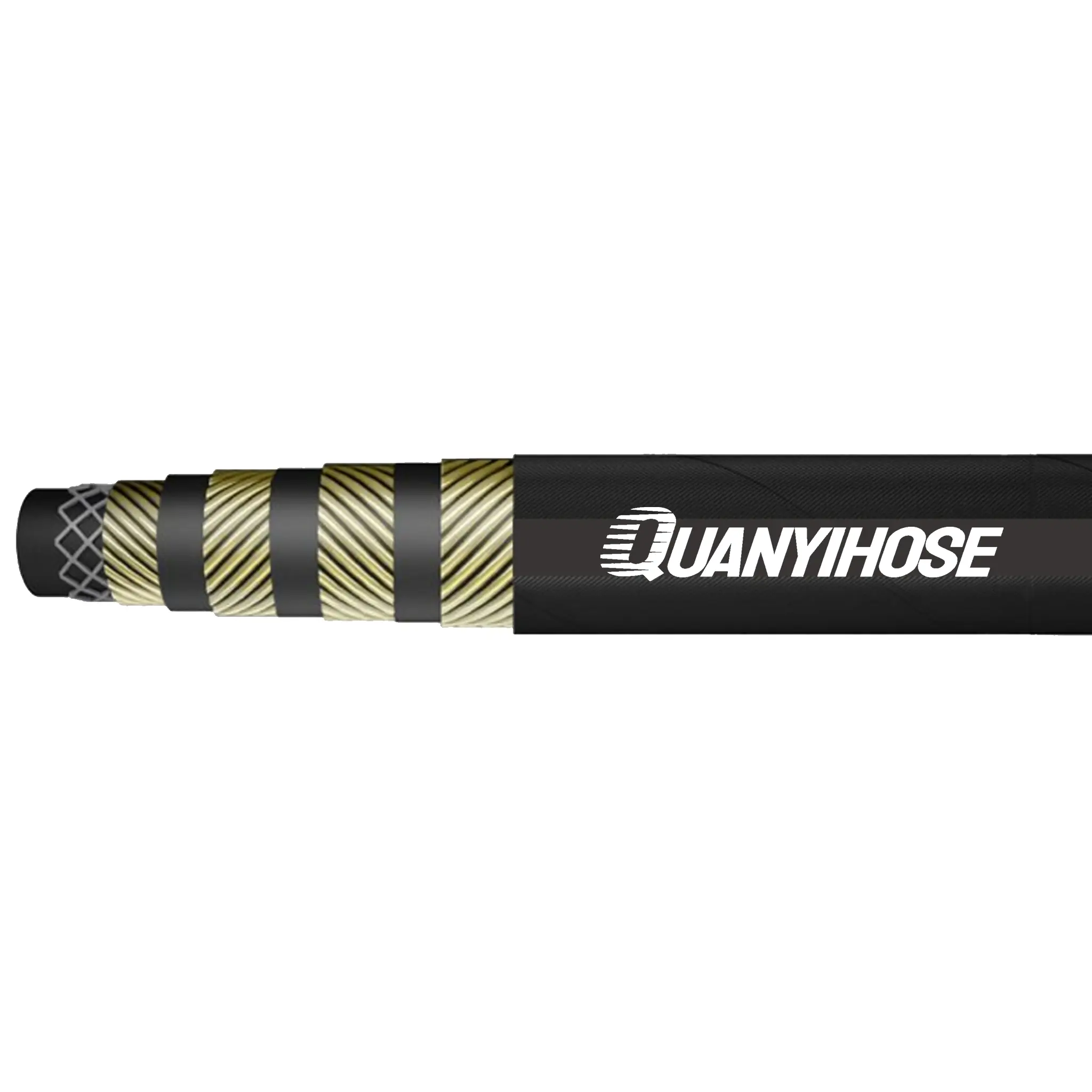

Hose Structure
Inner tube: oil-resistant NBR synthetic rubber
Reinforcement: four alternating layers of high-tensile steel wire spiral
Cover: thick abrasion, oil and weather-resistant synthetic rubber
Applications
Applications
Engineered for:
- Hydraulic mining shovels
- Drilling rigs
- Heavy-duty excavators
- Tunnel boring machines
- Offshore & marine hydraulics
Tube:Black, oil-resident synthetic rubber(Nitrile)
Reinforcement:Four alternating layers of spiraled, high-tensile steel wire.
Cover:Black, oil, abrasion and weather resistant, synthetic rubber.
Temperature Range:-40℉ to +250℉ (-40℃ to +121℃)
specification
| Size | Inside (mm) | Braid (mm) | Outside (mm) | Working Pressure | Burst Pressure | Bend Radius | Weight | Length | ||||||||
| DN | inch | mm | Dash | Min | Max | Min | Max | Min | Max | Bar | Psi | Bar | Psi | mm | kg/m | M |
| 6 | 1/4″ | 6.4 | -4 | 6.2 | 7.0 | 14.1 | 15.3 | 17.1 | 18.7 | 450 | 6525 | 1800 | 26100 | 150 | 0.60 | 40 |
| 10 | 3/8″ | 9.5 | -6 | 9.3 | 10.1 | 16.9 | 18.1 | 20.6 | 22.2 | 445 | 6450 | 1780 | 25810 | 180 | 0.70 | 40 |
| 13 | 1/2″ | 12.7 | -8 | 12.3 | 13.5 | 19.4 | 21.0 | 23.8 | 25.4 | 415 | 6020 | 1660 | 24070 | 230 | 0.80 | 40 |
| 16 | 5/8″ | 16.0 | -10 | 15.5 | 16.7 | 23.0 | 24.6 | 27.4 | 29.0 | 350 | 5075 | 1400 | 20300 | 250 | 0.98 | 40 |
| 19 | 3/4″ | 19.0 | -12 | 18.6 | 19.8 | 27.4 | 29.0 | 31.4 | 33.0 | 350 | 5075 | 1400 | 20300 | 300 | 1.45 | 40 |
| 25 | 1″ | 25.4 | -16 | 25.0 | 26.4 | 34.5 | 36.1 | 38.5 | 40.9 | 280 | 4060 | 1120 | 16240 | 340 | 2.05 | 40 |
| 32 | 1-1/4″ | 31.8 | -20 | 31.4 | 33.0 | 45.0 | 47.0 | 49.2 | 52.4 | 210 | 3045 | 840 | 12180 | 460 | 3.06 | 40 |
| 38 | 1-1/2″ | 38.1 | -24 | 37.7 | 39.3 | 51.4 | 53.4 | 55.6 | 58.8 | 185 | 2680 | 740 | 10730 | 560 | 3.65 | 40 |
| 51 | 2″ | 50.8 | -32 | 50.4 | 52.0 | 64.3 | 66.3 | 68.2 | 71.4 | 165 | 2390 | 660 | 9570 | 660 | 4.85 | 40 |
Advantages
Why Choose This Product
Impulse tested to 400,000+ cycles under cyclic pressure loading
100%% proof pressure tested at 2× working pressure on every batch
Burst pressure ≥ 3× working pressure per EN 856
Full traceability from wire and rubber to finished hose
OEM branding, MSHA-style flame-resistant covers and custom packaging available
Proven in mining shovels, drilling rigs and offshore hydraulic applications
Technical Data
Technical Specifications
| Inner Tube | Oil-resistant NBR synthetic rubber |
|---|---|
| Reinforcement | Four alternating high-tensile steel wire spirals |
| Cover | Abrasion & weather resistant synthetic rubber |
| Temperature | -40°C to +120°C |
| Standard | EN856 4SP / SAE 100R12 |
| Inside Diameter | 1/2" to 2" |
| Working Pressure | 45 MPa (1/2") to 16 MPa (2") |
| Burst Pressure | ≥ 3× working pressure |
| Impulse Life | ≥ 400,000 cycles |
| Length | Custom |
| Color | Black (custom available) |
FAQ
Frequently Asked Questions
What is the difference between 4SP and 4SH?
4SP and 4SH are both four-spiral hoses but with different pressure-vs-size curves. 4SP has higher working pressure at smaller sizes (e.g. 45 MPa at 1/2"). 4SH has higher working pressure at larger sizes. Select by the pressure rating required at your specific inside diameter.
Is 4SP the same as SAE 100R12?
4SP and SAE 100R12 are dimensionally close and often used interchangeably, but they are not identical standards. For OEM qualification, specify the exact standard. Most global mining and construction OEMs accept either.
What is the impulse life of 4SP hose?
Our 4SP hoses are impulse tested to ≥ 400,000 cycles at 133%% of working pressure per EN 856. This significantly exceeds the standard requirement and reflects real-world cyclic loading in mining and excavator service.
Can you supply MSHA-approved flame-resistant 4SP?
Yes. We supply flame-resistant covers for underground mining applications. Provide your MSHA spec or refer to EN ISO 6805 for underground mining hose requirements.
What lengths are available?
4SP is typically supplied in custom lengths or as pre-crimped assemblies. Standard coil lengths are also available. Send your length and assembly BOM for a quotation.
