SAE 100 R2 Hydraulic Hose

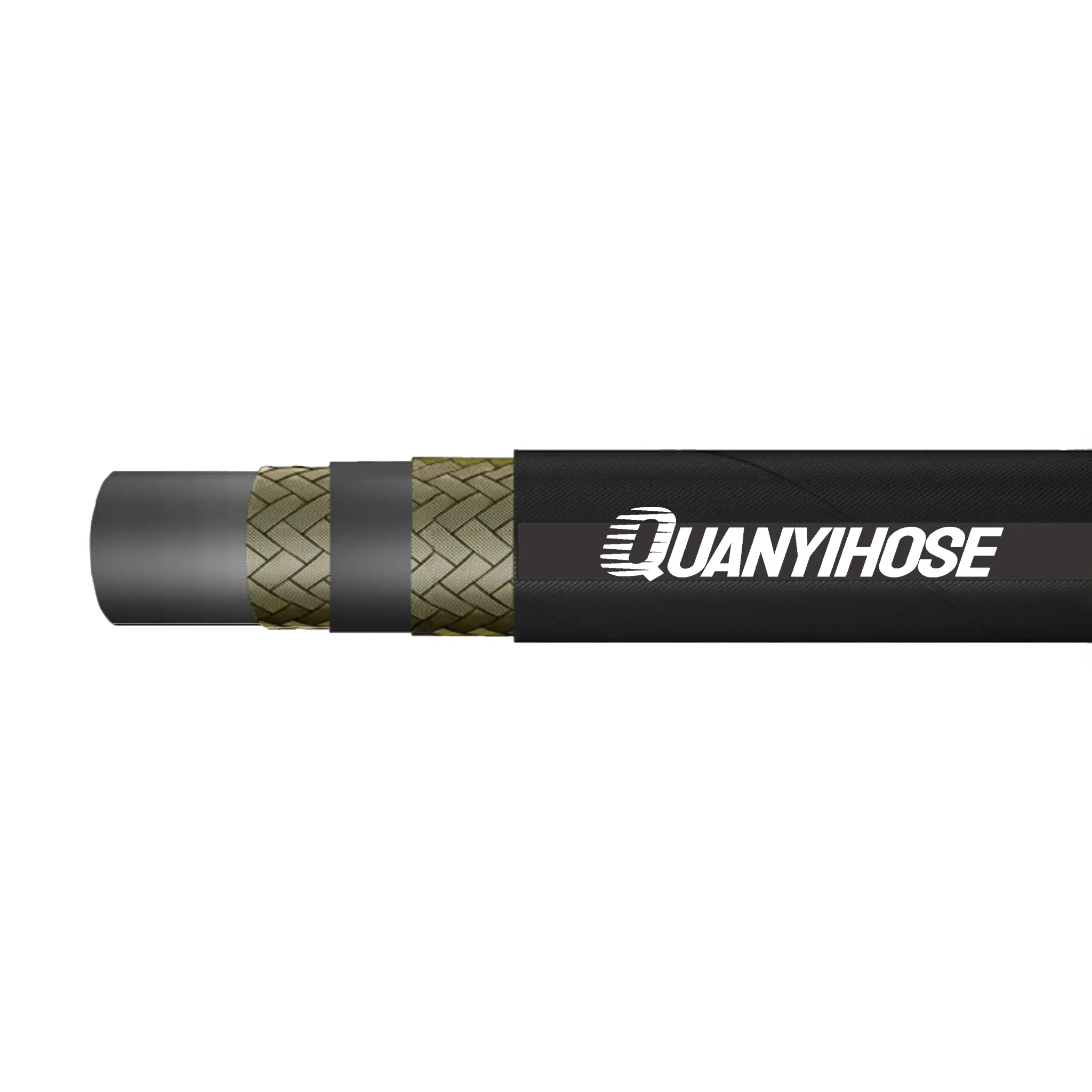

SAE 100R2 / EN853 2SN Two-Wire Braided Hydraulic Hose

Two-wire braid hydraulic hose for high-pressure hydraulic lines.

Quick Specifications

Inner Tube	Oil-resistant NBR synthetic rubber
Reinforcement	Two high-tensile steel wire braids
Cover	Abrasion & weather resistant synthetic rubber
Temperature	-40°C to +100°C
Standard	SAE 100R2AT / EN853 2SN
Inside Diameter	1/4" to 2"

Request A Quote WhatsApp

SAE / DIN / EN Standards

100% Proof Tested

OEM Branding Available

MOQ Flexible

Overview

Product Overview

The SAE 100R2 / EN853 2SN hydraulic hose features two high-tensile steel wire braids for higher pressure capacity than 1SN. It is the workhorse of high-pressure hydraulic systems on excavators, loaders, cranes and press machines. Manufactured to SAE J517 and EN 853 standards, every length is proof-tested at 2× working pressure.

Key Features

Two high-tensile steel wire braids for higher pressure capacity than 1SN
Working pressure up to 41 MPa (5,950 psi) at 1/4" for high-pressure circuits
Oil-resistant NBR tube compatible with standard hydraulic fluids
Abrasion-resistant cover rated for mobile equipment duty cycles
Full size range 1/4" to 2" ID covering most high-pressure applications
Equivalent to SAE 100R2AT and EN 853 2SN - accepted by global OEMs

Structure

Hose Structure

Inner tube: oil-resistant NBR synthetic rubber
Reinforcement: two layers of high-tensile steel wire braid
Cover: abrasion and weather-resistant synthetic rubber

Applications

Suitable for:

Excavators and loaders
Cranes and lifting equipment
Press machines
Mobile hydraulics
Industrial hydraulic presses

Hydraulic Hose SAE 100R2 Recommended For:

High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT performance requirements of EN853 2SN.

Hydraulic Hose SAE 100R2 Application Fields:

For high pressure hydraulic systems in industry and agriculture.

INNER TUBE: oil resistant synthetic nitrile rubber

REINFORCEMENT: two layers of steel wire braided

COVER: oil and weather resistant synthetic rubber

Working Temperature: -104℉ to +212℉ (-40℃ to +100℃)

SURFACE: wrapped surface,smooth surface

Hydraulic Hose SAE 100R2 Standard: SAE 100 R2 AT

Size				Inside (mm)		Braid (mm)		Outside (mm)	Working Pressure		Burst Pressure		Bend Radius	Weight	Length
DN	inch	mm	Dash	Min	Max	Min	Max	Max	Bar	Psi	Bar	Psi	mm	kg/m	M
5	3/16″	4.8	-3	4.6	5.4	10.6	11.6	13.0	420	6000	1680	24000	90	0.28	50/100
6	1/4″	6.4	-4	6.2	7.0	12.1	13.3	14.2	400	5850	1600	23200	100	0.33	50/100
8	5/16″	7.9	-5	7.7	8.5	13.7	14.9	15.8	350	5000	1400	20000	115	0.36	50/100
10	3/8″	9.5	-6	9.3	10.1	16.1	17.3	18.2	330	4800	1320	19200	125	0.46	50/100
13	1/2″	12.7	-8	12.3	13.5	19.0	20.6	21.3	275	4000	1100	16000	175	0.53	50/100
16	5/8″	15.9	-10	15.5	16.7	22.2	23.8	24.5	250	3630	1000	14500	200	0.67	50
19	3/4″	19.0	-12	18.6	19.8	26.2	27.8	28.6	215	3120	850	12500	240	0.90	50
25	1″	25.4	-16	25.0	26.4	34.1	35.7	36.6	165	2400	660	9600	300	1.25	50
32	1-1/4″	31.8	-20	31.4	33.0	43.3	45.7	46.4	125	1820	500	7280	420	1.85	40
38	1-1/2″	38.1	-24	37.7	39.3	49.6	52.0	52.8	90	1310	360	5240	500	2.09	40
51	2″	50.8	-32	50.4	52.0	62.3	64.7	65.6	80	1200	320	4640	630	2.75	40

Advantages

Why Choose This Product

100%% proof pressure tested at 2× working pressure on every batch

Burst pressure ≥ 3× working pressure per SAE J517 and EN 853

Impulse tested to 200,000+ cycles for cyclic loading reliability

Full batch traceability from raw rubber to finished hose

OEM branding, custom cover colors and printing available

Stable lead times and container-scale monthly capacity

Technical Data

Technical Specifications

Inner Tube	Oil-resistant NBR synthetic rubber
Reinforcement	Two high-tensile steel wire braids
Cover	Abrasion & weather resistant synthetic rubber
Temperature	-40°C to +100°C
Standard	SAE 100R2AT / EN853 2SN
Inside Diameter	1/4" to 2"
Working Pressure	41 MPa (1/4") to 14 MPa (2")
Burst Pressure	≥ 3× working pressure
Length	50m / 100m / custom
Color	Black (custom available)

FAQ

Frequently Asked Questions

When should I choose 2SN over 1SN?

Choose 2SN when system pressure exceeds the 1SN rating for the same size. 2SN also provides higher burst safety margin for applications with pressure spikes, such as excavator boom and arm circuits.

What is the burst pressure of 2SN hose?

Burst pressure is at least 3× the working pressure for every size. For example, 1/4" 2SN has a 41 MPa working pressure and a minimum 123 MPa burst pressure.

Can 2SN replace 1SN?

Yes - 2SN has equal or higher pressure rating at every size. The trade-off is a slightly larger bend radius. Many OEMs standardize on 2SN to reduce SKU count across multiple pressure circuits.

What fittings work with 2SN hose?

2SN pairs with standard SAE J516 or DIN EN ISO 12163 reusable and crimp fittings. Always crimp to the fitting manufacturer's recommended diameter for the exact hose part number.

Do you supply pre-crimped assemblies?

Yes. Send your BOM with hose type, size, length, fitting part numbers and quantity. We ship assemblies crimped, proof-tested, labelled and packaged to your spec.
