SAE 100 R1 Hydraulic Hose

SAE 100R1 / EN853 1SN Steel Wire Braided Hydraulic Hose

One-wire braid hydraulic hose for medium-pressure lines in hydraulic systems.

Quick Specifications

Internal Hose	Oil resistant synthetic rubber.
Reinforcement	One high tensile steel wire braid.
Cover	Oil and weather resistant synthetic rubber, Wrapped/Smooth cover.
Application	Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Temperature	-40°C to +100°C (-55°C to +100°C, intermittent 120°C).
Working Pressure	40 – 250 Bar / 580 – 3625 Psi.

Request A Quote WhatsApp

SAE / DIN / EN Standards

100% Proof Tested

OEM Branding Available

MOQ Flexible

Overview

Product Overview

The SAE 100R1 / EN853 1SN hydraulic hose is a single wire braid reinforced rubber hose designed for medium-pressure hydraulic applications. The tube is made of oil-resistant NBR synthetic rubber, reinforced with one high-tensile steel wire braid, and covered with abrasion-resistant synthetic rubber. It is the most widely used hydraulic hose for construction machinery, agricultural equipment and industrial hydraulic systems.

Quanyi Rubber produces 1SN hoses strictly to SAE J517 and EN 853 standards, with 100%% proof pressure testing on every batch.

Key Features

Single high-tensile steel wire braid reinforcement for medium-pressure service
Oil-resistant NBR inner tube compatible with standard mineral hydraulic fluids
Abrasion and weather-resistant cover for outdoor and mobile equipment
Wide size range from 1/4" to 2" ID covering most medium-pressure circuits
Tight bend radius simplifies routing in confined machinery compartments
Fully compliant with SAE 100R1AT and EN 853 1SN dimensional tolerances

Structure

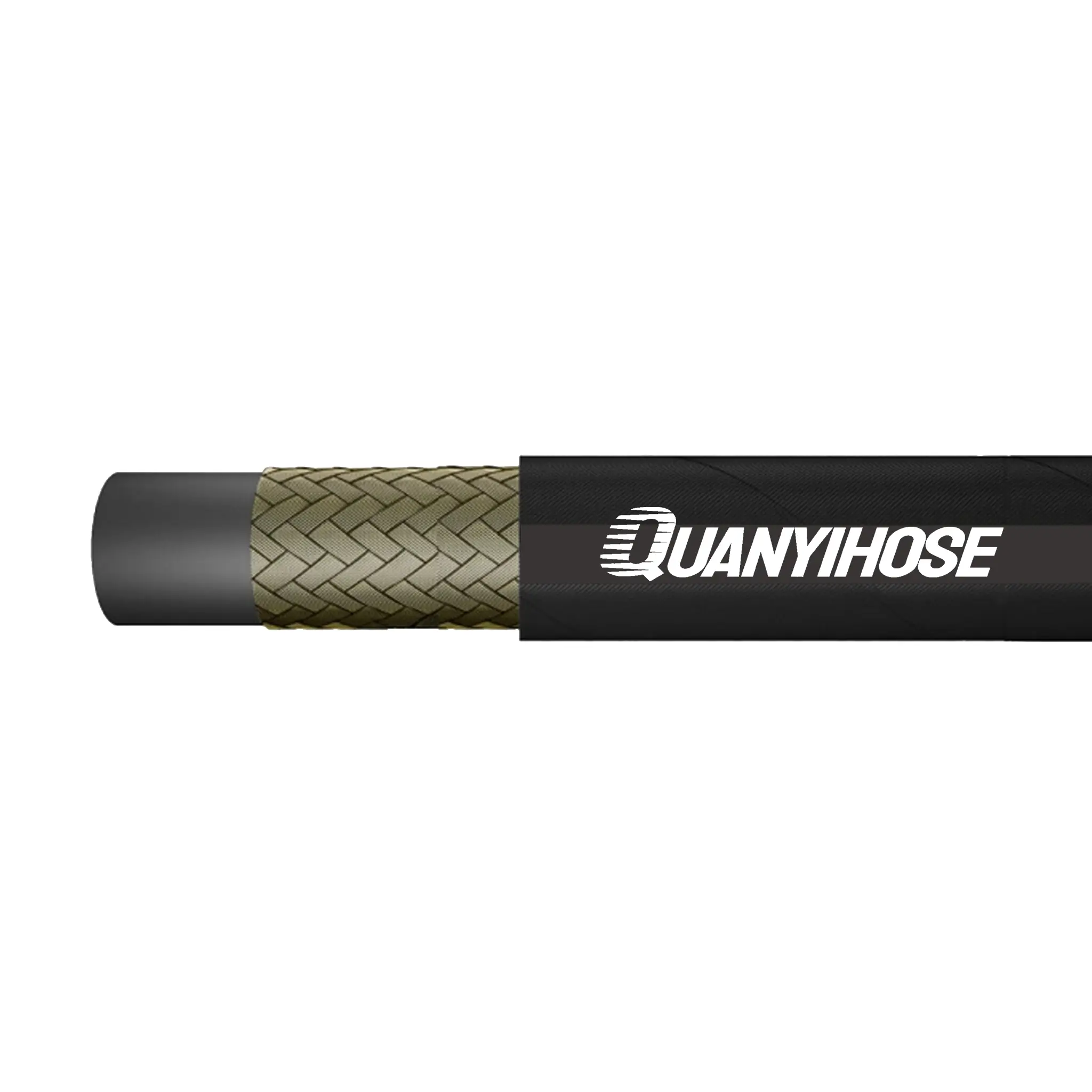

Hose Structure

Inner tube: oil-resistant NBR synthetic rubber
Reinforcement: one layer of high-tensile steel wire braid
Cover: abrasion and weather-resistant synthetic rubber

Applications

Ideal for:

Construction machinery hydraulic lines
Agricultural equipment
Industrial hydraulic systems
Material handling equipment
Mining support equipment

Hydraulic Hose SAE 100R1 Recommended For:

Medium pressure hydraulic hoses. Meets or exceeds the requirements of SAE 100 R1 Type AT and performance requirements of EN 853 1SN.

Hydraulic Hose SAE 100R1 Application Fields:

Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.

INNER TUBE: oil resistant synthetic nitrile rubber

REINFORCEMENT: single layer of steel wire braided

COVER: Black, oil resistant, synthetic rubber

SURFACE: wrapped surface,smooth surface

Hydraulic Hose SAE 100R1 TEMPERATURE RANGE: -40℃（-104℉） to +100℃ （+212℉）

Hydraulic Hose Standard: SAE 100 R1 AT:

Size				Inside (mm)		Braid (mm)		Outside (mm)	Working Pressure		Burst Pressure		Bend Radius	Weight	Length
DN	inch	mm	Dash	Min	Max	Min	Max	Max	Bar	Psi	Bar	Psi	mm	kg/m	M
5	3/16″	4.8	-3	4.6	5.4	9.0	10.0	12.5	250	3625	1000	14500	90	0.20	50/100
6	1/4″	6.4	-4	6.2	7.0	10.6	11.6	14.1	225	3260	900	13050	100	0.21	50/100
8	5/16″	7.9	-5	7.7	8.5	12.1	13.3	15.7	215	3120	850	12325	115	0.24	50/100
10	3/8″	9.5	-6	9.3	10.1	14.5	15.7	18.1	180	2610	720	10440	130	0.31	50/100
13	1/2″	12.7	-8	12.3	13.5	17.5	19.1	21.4	160	2320	640	9280	180	0.37	50/100
16	5/8″	15.9	-10	15.5	16.7	20.6	22.2	24.5	130	1885	520	7540	200	0.47	50
19	3/4″	19.0	-12	18.6	19.8	24.6	26.2	28.5	105	1520	420	6090	240	0.56	50
25	1″	25.4	-16	25.0	26.4	32.5	34.1	36.6	88	1280	350	5075	300	0.95	50
32	1-1/4″	31.8	-20	31.4	33.0	39.3	41.7	44.8	63	910	250	3625	420	1.10	40
38	1-1/2″	38.1	-24	37.7	39.3	45.6	48.0	52.1	50	725	200	2900	500	1.41	40
51	2″	50.8	-32	50.4	52.0	58.7	61.7	65.5	40	580	160	2320	630	1.86	40

Advantages

Why Choose This Product

Manufactured to SAE J517 and EN 853 standards with full batch traceability

100%% proof pressure tested at 2× working pressure before shipment

Impulse tested to 200,000+ cycles under cyclic loading

OEM branding, custom cover colors and private-label packaging available

Low MOQ for sampling and rapid scale-up to container quantities

Stable lead times from Hengshui factory with monthly capacity for repeat orders

Technical Data

Technical Specifications

Internal Hose	Oil resistant synthetic rubber.
Reinforcement	One high tensile steel wire braid.
Cover	Oil and weather resistant synthetic rubber, Wrapped/Smooth cover.
Application	Petroleum-based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.
Temperature	-40°C to +100°C (-55°C to +100°C, intermittent 120°C).
Working Pressure	40 – 250 Bar / 580 – 3625 Psi.

FAQ

Frequently Asked Questions

What is the difference between SAE 100R1 and EN853 1SN?

The two standards are functionally equivalent. SAE 100R1AT (American) and EN 853 1SN (European) define the same single-wire-braid construction, pressure ratings and dimensions. Most global OEMs accept either - specify both when ordering for full traceability.

What working pressure can I expect from a 1SN hose?

Working pressure depends on inside diameter: 25 MPa (3,625 psi) at 1/4" and decreasing to 7 MPa (1,015 psi) at 2". Always select a hose whose working pressure exceeds your system maximum pressure, including spikes.

Can I use 1SN hose on excavators?

1SN is suitable for medium-pressure return and drain lines on excavators. For high-pressure boom, arm and bucket circuits use 2SN or 4SP/4SH depending on pressure. Refer to your equipment manual or consult our engineers.

Do you provide material and test certificates?

Yes. Every order ships with a packing list and test report. Material certificates (EN 10204 3.1), impulse test reports and dimensional inspection records are available on request.

What is the minimum order quantity for custom branding?

Sampling MOQ is typically 500 m per size. For private-label printing and custom packaging, MOQ is 2,000 m per size. Contact us with your specific requirements for an exact quote.

Request a Quote

Get a Quotation for SAE 100R1 / EN853 1SN Steel Wire Braided Hydraulic Hose

Send us your specifications - size, length, pressure rating, quantity and destination port. Our sales engineer will respond within 4 business hours with a quotation, datasheet and lead time.
